Gauge

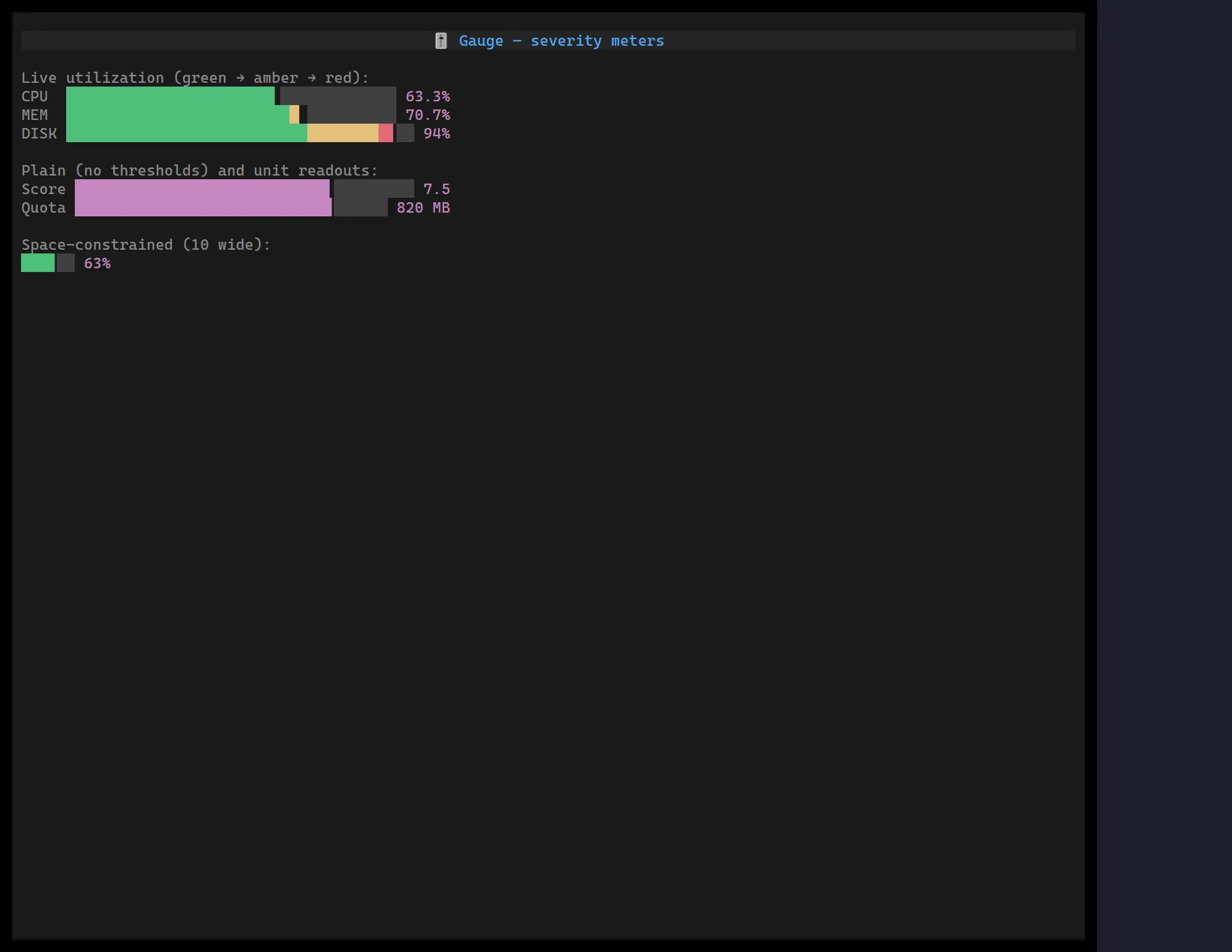

<Gauge> is a single-value meter — a labelled bar whose fill is coloured by severity thresholds (green → amber → red) with a value readout. Use it for utilization, quota, and score signals (CPU, disk, rate limits) where the level carries meaning, unlike a plain progress bar which only shows progress in one colour.

Each track cell colours by the band it falls in, so the filled portion reads as coloured zones; cells past the value are a dim track.

Usage

import { Gauge } from "@huyz0/ztui/react";

<Gauge
  label="CPU"
  value={82}
  unit="%"
  thresholds={[
    { at: 0, color: "$success" },
    { at: 70, color: "$warning" },
    { at: 90, color: "$error" },
  ]}
  style={{ width: 48 }}
/>;

Key props

• value, min, max — the value and its scale (defaults 0–100).
• label — optional text shown before the bar.
• unit — readout unit (e.g. %, MB); when unset the readout is a percentage.
• thresholds — { at, color }[] severity bands; the fill colours by the band each cell falls in.
• color — base fill colour when no threshold applies (default $accent).
• showValue — print the readout after the bar (default true).

Under a tight width the gauge sheds the readout, then the label, to keep at least a one-cell bar.

Full demo →
